High-performance rare earth motors deliver exceptional power density, but their intense operation generates significant heat that must be properly managed.
Overheating can reduce efficiency by 10-15%, shorten lifespan, and even cause catastrophic failures.
This guide explains practical thermal management solutions in straightforward terms, helping users maintain peak motor performance without technical overwhelm.
Why Do Rare Earth Motors Overheat More Easily?
Higher Power Density Challenges
The trend toward higher power density in compact designs presents significant challenges, particularly regarding heat management.
As manufacturers strive to pack more power into smaller spaces, the concentration of heat generation becomes a critical issue that must be addressed.
When devices operate in confined environments, the heat produced can exceed safe levels, leading to potential failures and reduced performance.
Effective thermal management solutions, such as advanced cooling systems or heat sinks, are essential to dissipate this heat and maintain optimal operating temperatures.
Sensitive Magnet Properties
Sensitive magnet properties, particularly those of rare earth magnets, pose significant challenges in high-temperature applications.
These magnets are known for their exceptional strength and efficiency; however, they have a critical limitation: if they are overheated beyond their Curie point, they can permanently lose their magnetic strength.
This loss of magnetism not only compromises the performance of the device but can also lead to catastrophic failures in applications where reliable magnetic properties are essential, such as in motors and generators.
Increased Current Demands
In high torque applications, the increased current demands placed on windings create significant challenges related to heat buildup.
As the load on a motor or generator increases, more current flows through the winding coils, which generates additional heat due to electrical resistance.
This heat buildup can lead to overheating, potentially damaging insulation and other components, and ultimately resulting in reduced efficiency and shorter operational lifespan.
To address these challenges, engineers must design systems that can effectively manage heat dissipation, such as using higher thermal conductivity materials or incorporating active cooling methods.
What Are the First Signs of Overheating?
Performance Degradation
Performance degradation in electrical systems often manifests as noticeable power drops ranging from 5% to 10%, which can be an early warning sign of underlying issues.
These drops in power output are frequently accompanied by measurable temperature spikes, indicating that components are operating outside their optimal temperature range.
Such degradation can result from various factors, including excessive current flow, insufficient cooling, or component wear.
Recognizing these early signs is crucial for maintenance teams, as they can take proactive measures to diagnose and address the root causes before they lead to more serious failures.
Unusual Odor Detection
The detection of unusual odors, particularly the smell of burning insulation, serves as a critical indicator of potential thermal issues within electrical systems.
When winding temperatures exceed 150°C, the insulation materials can start to degrade, releasing noxious fumes that signal impending failure.
This odor is a clear warning that the components are overheating, which can lead to short circuits, reduced efficiency, and even catastrophic failures if not addressed promptly.
It is essential for operators to be vigilant and responsive to such signs, as timely intervention can prevent extensive damage and ensure safety.
Thermal Expansion Noises
Thermal expansion noises, such as clicking or popping sounds, often indicate that components are experiencing heat stress due to temperature fluctuations.
As materials heat up, they expand, and when they cool down, they contract.
This cycle can create tension within the components, leading to audible noises that may suggest potential mechanical issues.
These sounds can be indicative of improper material selection, inadequate thermal management, or design flaws that fail to account for thermal expansion.
Also Read:
- How Rare Earth Magnets Boost Efficiency in Permanent Magnet Synchronous Motors
- Top Factors to Consider When Buying Rare Earth PMS Motors for Your Business

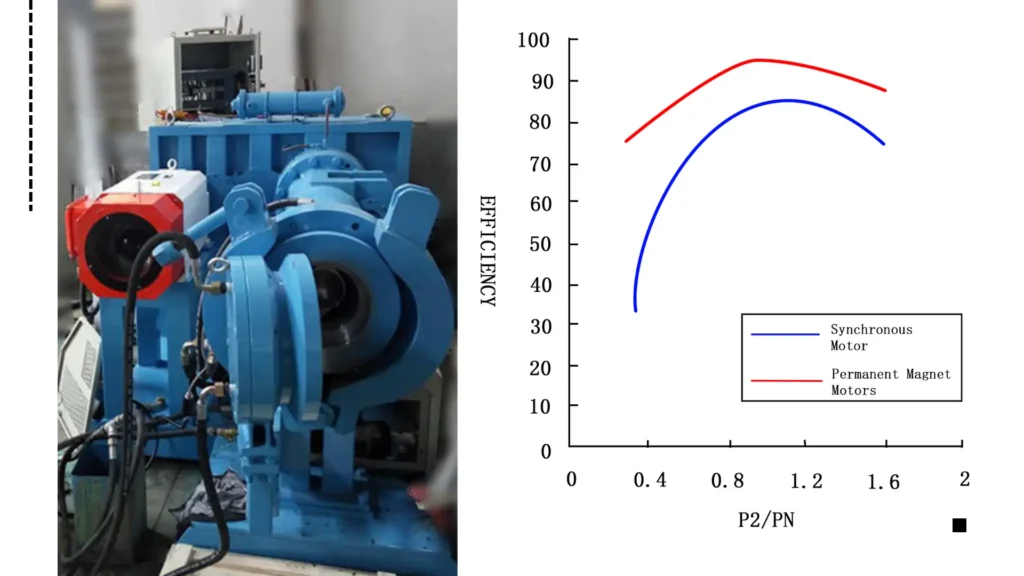

How Does Proper Cooling Improve Efficiency?
Resistance Reduction
Reducing winding temperatures can significantly impact the efficiency of electrical systems, particularly in terms of copper losses.
For every 10°C drop in winding temperature, copper losses are reduced by nearly 4%. This reduction is crucial because copper losses, which occur due to electrical resistance in the windings, directly affect the overall performance and energy efficiency of motors and generators.
By implementing effective cooling strategies, such as enhanced ventilation or active cooling systems, manufacturers can maintain lower operating temperatures.
Magnet Protection
Maintaining temperatures below 80°C is essential for preserving the magnetic strength of rare earth magnets over the long term.
When these magnets exceed this critical temperature threshold, they risk losing up to 99% of their magnetic strength permanently due to thermal degradation.
This loss can severely impact the performance of motors, generators, and other devices that rely on strong magnetic fields for efficient operation.
Lubricant Preservation
Cooler operation in mechanical systems plays a vital role in preserving the integrity of lubricants used in bearings and gears.
High temperatures can accelerate the breakdown of oil, leading to reduced lubrication effectiveness, increased friction, and higher wear rates on mechanical components.
By maintaining lower operating temperatures, manufacturers can extend the life of lubricants, ensuring that they continue to provide optimal protection against wear and tear.
This preservation of lubricant properties not only enhances the performance of machinery but also reduces maintenance costs and downtime associated with lubricant replacement.
What Passive Cooling Methods Work Best?

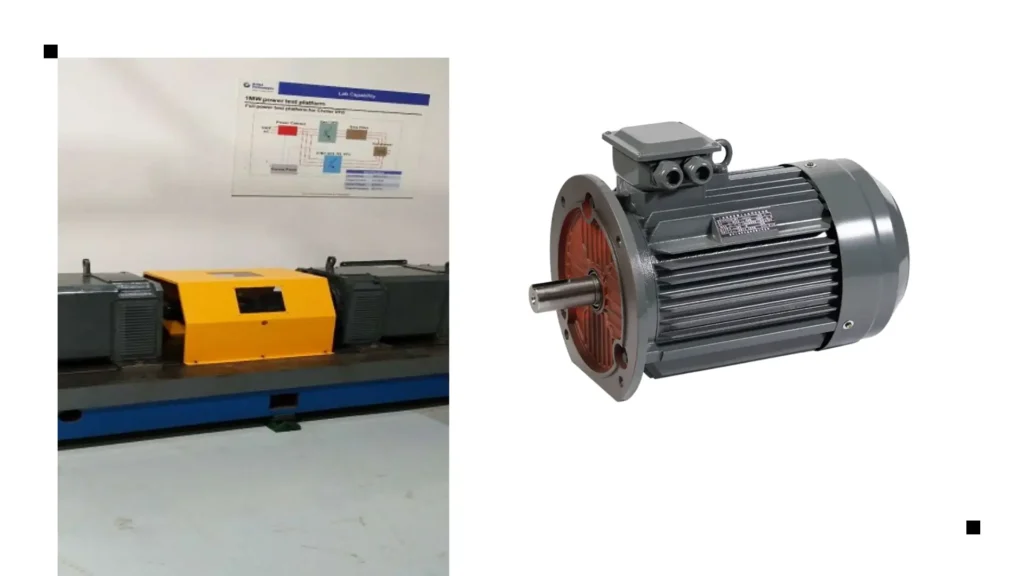

Optimized Housing Designs
Optimized housing designs play a crucial role in enhancing the thermal performance of electronic devices, with ribbed aluminum casings being a particularly effective solution.
These casings increase the surface area by approximately 30%, facilitating improved natural convection.
The ribbed structure allows for more efficient airflow around the housing, enabling heat to dissipate more effectively.
This enhanced thermal management is essential for maintaining optimal operating temperatures, which can prolong the lifespan of electronic components and reduce the risk of overheating.
Thermal Interface Materials
The use of high-conductivity thermal interface materials (TIMs) is critical for improving heat transfer between components and their external surfaces.
These specialized gap fillers, designed to fill microscopic spaces between surfaces, significantly enhance thermal conduction, ensuring that heat generated by electronic components is efficiently transferred away from critical areas.
By reducing thermal resistance, high-conductivity TIMs help maintain lower temperatures within devices, which is vital for preventing performance degradation and extending component life.
Strategic Ventilation
Strategic ventilation is essential for creating effective natural airflow within electronic enclosures without compromising their ingress protection (IP) ratings.
By incorporating precisely placed openings, manufacturers can facilitate the movement of air while preventing dust, moisture, and other contaminants from entering the housing.
This balance ensures that devices remain protected from environmental hazards while allowing for adequate cooling through passive airflow.
Proper ventilation design not only improves thermal performance by promoting heat dissipation but also enhances overall system reliability by preventing overheating.
When Should You Consider Active Cooling?
Forced Air Systems
Forced air systems utilize small fans to effectively lower the temperatures of critical components by 15-20°C, providing a cost-efficient solution for thermal management.
These fans create airflow that actively dissipates heat away from sensitive areas, preventing overheating and ensuring components operate within their optimal temperature ranges.
The economic advantage of forced air systems lies in their relatively low installation and operational costs compared to more complex cooling solutions.
Liquid Cooling Jackets
Liquid cooling jackets are highly effective for managing heat loads that exceed 500W/kg, utilizing a water/glycol mixture to transfer heat away from critical components.
This method leverages the high thermal conductivity of liquids, allowing for efficient heat absorption and dissipation.
The circulation of the coolant through the jackets ensures that heat is continuously removed from the components, maintaining stable operating temperatures even under heavy loads.
Phase Change Materials
Phase change materials (PCMs) serve as embedded thermal buffers that effectively absorb heat spikes during intermittent overloads, enhancing thermal stability in electronic systems.
These materials are capable of storing and releasing significant amounts of thermal energy as they transition between solid and liquid states.
When temperatures rise due to sudden increases in load, PCMs absorb excess heat, thereby preventing critical components from overheating.
How Does Smart Thermal Monitoring Help?
Embedded Temperature Sensors
Embedded temperature sensors, such as resistance temperature detectors (RTDs) and thermistors, play a critical role in monitoring the thermal health of electrical systems by providing real-time data on winding and magnet temperatures.
These sensors are strategically placed within the system to capture accurate temperature readings, allowing for continuous assessment of component conditions.
By providing immediate feedback on thermal performance, RTDs and thermistors enable operators to detect potential overheating issues before they lead to failures.
Predictive Algorithms
Predictive algorithms powered by machine learning models are increasingly used to anticipate overheating risks before they manifest as critical failures.
By analyzing historical temperature data and operational patterns, these algorithms can identify trends and anomalies that signal potential overheating events.
This proactive approach allows for timely interventions, such as adjustments to cooling systems or operational parameters, thereby preventing damage and enhancing system reliability.
Automatic Derating
Automatic derating is an intelligent control strategy that gradually reduces the load on a system to prevent thermal runaway, ensuring safe and reliable operation under high-temperature conditions.
Intelligent controllers monitor temperature data in real-time and, upon detecting rising temperatures, initiate derating procedures to lower the operational load.
This gradual reduction helps to mitigate overheating risks without abruptly shutting down the system, allowing for continued operation while protecting critical components.
What Maintenance Prevents Overheating?
Regular Airflow Inspection
Regular airflow inspections are essential for maintaining the efficiency of cooling systems, as cleaning ventilation paths can restore 90-95% of the original cooling capacity. Over time, dust, debris, and other obstructions can accumulate in ventilation channels, hindering airflow and reducing the effectiveness of cooling mechanisms.
By routinely inspecting and cleaning these pathways, operators can ensure that air can flow freely, allowing for optimal heat dissipation from critical components.
Thermal Paste Renewal
Renewing thermal paste, or interface compounds, every 2-3 years is crucial for maintaining optimal heat transfer between components, such as CPUs and heat sinks.
Over time, thermal paste can dry out, lose its effectiveness, and fail to provide adequate thermal conductivity, which can lead to increased operating temperatures and potential overheating.
By reapplying high-quality thermal paste, technicians ensure that there is minimal thermal resistance at the interface, allowing for efficient heat dissipation.
Load Profile Verification
Load profile verification is a critical process that involves ensuring that actual operational conditions align with design specifications to prevent chronic overheating.
This verification process entails monitoring the system’s performance under various load conditions and comparing it to expected parameters established during the design phase.
Discrepancies between actual and designed load profiles can signal potential issues, such as overloading or inadequate cooling, which may lead to overheating and component failure.
How Are New Materials Solving Thermal Challenges?
High-Temp Magnet Grades
These advanced magnets maintain their magnetic strength and performance under elevated thermal conditions, making them ideal for applications in industries such as aerospace, automotive, and high-performance electric motors.
The ability to operate effectively at higher temperatures allows for greater design flexibility and enhances the reliability of systems that encounter extreme heat.
Nanocomposite Insulation
These nanocomposite insulations can withstand higher thermal stresses, providing effective protection against heat-induced degradation and ensuring the safety and reliability of electrical components.
This innovation in insulation technology is essential for applications where maintaining structural integrity and thermal stability is critical, especially in high-temperature environments.
Ceramic Bearings
Made from advanced ceramic materials, these bearings exhibit excellent thermal stability, allowing them to operate effectively in conditions where metal bearings may fail due to lubrication loss.
The inherent properties of ceramics, such as low friction coefficients and high resistance to wear, enable these bearings to maintain performance without the risk of overheating or seizing.
Conclusion
Effective thermal management transforms rare earth motors from temperamental powerhouses into reliable workhorses.
By combining proper cooling strategies with smart monitoring and preventive maintenance, users can consistently achieve 95%+ of rated performance while extending operational life by years.
The solutions exist—it’s just about implementing the right combination for your specific application.
